LED-POD™-1
LED Light Source for Optical Fibers
The Perfect Tool for Fluorescence Spectroscopy
 |

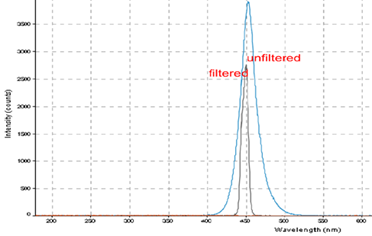

A filter in the light path eliminates out-of-band radiation, allowing to observe fluorescence from 10 nm beyond the emission maximum |
 |

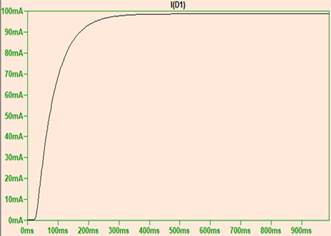

Smooth LED turn-on prolongs LED life and allows to control remotely with a simple switch or relay |
 |

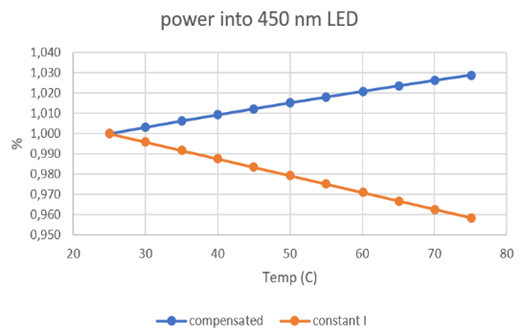

The electronics increases the power delivered to the LED at higher temperature, to compensate for LED´s drop in power output |
 |
The optical design uses silica and sapphire lenses for the best possible coupling to inside filters and SMA connectorized optical fibers |
Specifications*:
| LED source | Factory Installed |
| Power Supply | 12 +/- 1 VDC on 2.1 mm Jack |
| Power Consumption | LED
dependent, up to 500 mA (Wall Mount Supply included) |
| Temperature | Operating:
0… 70 °C Storage: -40… 105 °C |
| Humidity | 0… 95% RH, non-condensing |
| Dimensions | 35 x 70 x 52 mm (HWD) |
| Weight | 120 g w/out Power Supply |
| Protection | IP54 |
| Applicable Standards | FCC Part 15 (Class B); EN 50081-1, 50082-1 (CE Class B) |
| Warranty | One year parts and labour |
|
L.Q.C. s.l.u. Av.Girona 72 bx 17130 La Escala, Spain Tel +34 902 889 342 Mob +34 607 07 1196 Fax +34 972 77 4387 http://www.lqc.es info@lqc.es |
